Size Range: Flange Thickness: 0.250" - 1.250" (6.35-31.75 mm)
Material: Carbon Steel
Finish: Plain or Electro-Galvanized per ASTM B633

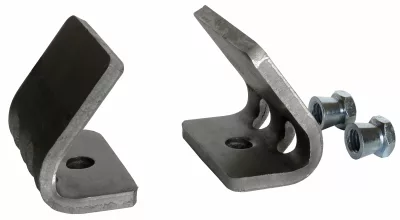

Service: A seismic structural attachment designed to attach to steel I-beams. The structural brace attachment rigidly braces piping systems subjected to horizontal seismic loads.
Approvals: cULus Listed (UL 203a) and FM Approved (FM 1950-10 & FM 1950-13). Complies with the hanging and bracing requirements listed in NFPA 13. Additionally, cULus Listed (UL 203) as a hanger for up to 8" pipe.
Features: Shear off nuts provide a visual indication that the desired torque value has been achieved.
Installation Instructions:
- Insert one 1/2" x 1 1/2" hex bolt through the mounting hole of one bracket.
- Place both brackets on a horizontal steel flange.
- Install two 1/2"-13 studs or bolts with the shear off nuts through the mounting slots on both brackets. Studs or bolts manufactured per ASTM A307 or equivalent.
- Torque shear off nuts evenly and equally until the heads shear off.
- Install the 1/2" x 1 1/2" mounting bolt through the 1/2" AF075, AF076, or AF077 mounting hole. The mounting bolt shall be installed wrench tight (typically finger tight plus 1/2 to 1/2 turns).
- Installation angle determined by the brace angle of the brace pipe and the AF075, AF076, or AF077.
- Fire Protection applications shall also be installed per the requirements of NFPA 13 and local codes.
Patent: No. 6,334,285
Ordering: Specify figure number, finish and description.
Note: Only sold with brackets and shear off nuts. 1/2 x 1 1/2" hex bolt and 1/2" -13 studs or bolts not included.
